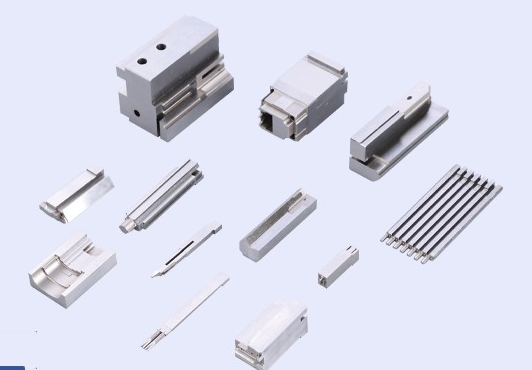

Mold Components

Standard and custom precision mold components including cores, cavities, slides, lifters, and inserts — machined to exact specifications with superior surface quality.

Custom & Standard

EDM / Grinding

DIN/HASCO Compatible

±0.005mm Precision

Hardened Steel

Trusted by

CLIENT A

CLIENT B

CLIENT C

What We Offer

Our Mold Components Services

Core & Cavity Inserts

Precision core and cavity inserts in P20, H13, S136, and other tool steels. CNC milled and EDM machined to exact specifications.

Slides & Side Actions

Hydraulic and angle-pin driven slides for complex undercut features. Designed for smooth, reliable operation over millions of cycles.

Lifters & Ejectors

Blade lifters, round lifters, and ejector pins in standard and custom sizes. Hardened and ground for maximum wear resistance.

Hot Tip Nozzles & Gates

Custom and standard hot tip nozzles, valve gates, and manifold components compatible with major hot runner brands.

Mold Bases

Standard mold bases in LKM, HASCO, DME, and custom sizes. Precision ground and drilled for fast assembly.

Wear & Spare Parts

Replacement wear parts, guide pins, bushings, return pins, and springs to keep your molds running at peak performance.

Materials

Available Materials

We work with a wide range of materials to match your performance and budget requirements.

P20 Tool Steel (HRC 28–34)

Pre-hardened, versatile tool steel for core/cavity inserts and mold bases. Good machinability and polishability.

H13 Hot Work Steel (HRC 48–52)

Premium hot work tool steel with excellent thermal fatigue resistance. For high-volume and demanding applications.

S136 Stainless Tool Steel (HRC 48–52)

Mirror-polishable stainless steel with exceptional corrosion resistance. For optical parts and corrosive materials.

SKD11 / D2 Cold Work Steel

High chromium cold work tool steel with excellent wear resistance. Suitable for high-abrasive applications.

Cemented Carbide (Tungsten)

Extreme hardness for the most demanding wear applications where tool steel is insufficient.

Specifications

Technical Capabilities

Precision Tolerance

±0.005 mm (grinding), ±0.01 mm (EDM)

Surface Roughness

Ra 0.1 – 3.2 μm (as required)

Max Component Size

600 × 500 × 400 mm

Min Feature Size

0.2 mm (EDM wire cutting)

Processes

CNC Milling, EDM, Wire EDM, Grinding, Jig Boring

Heat Treatment

Vacuum hardening, tempering, nitriding available

Coating Options

TiN, TiAlN, DLC, Chrome, Nitride

Standards

HASCO, DME, LKM, Meusburger compatible

Lead Time

5–15 business days depending on complexity

FAQ

Frequently Asked Questions

Can you make components to match existing HASCO or DME standards?

Yes. We manufacture components fully compatible with HASCO, DME, LKM, Meusburger, and other international mold base standards.

What machining processes do you use for mold components?

We use CNC milling, CNC turning, EDM, wire EDM, surface grinding, jig grinding, and cylindrical grinding.

Do you offer heat treatment services?

Yes. We provide vacuum hardening, tempering, and stress relieving services for tool steels.

Can you apply coatings to extend tool life?

Yes. We offer PVD coatings including TiN, TiAlN, CrN, and DLC coatings.

Can you reverse-engineer worn or damaged components?

Yes. Send us your worn component and we will 3D scan or measure it and produce a replacement to the original specification.

Ready to Get Started?

Upload your files and get a quote for your mold components project within 24 hours.

Fast Response

Quote within 24 hours of file submission

NDA Available

Your designs and IP are fully protected

No Minimum Orders

From 1 prototype to 100,000+ production parts
